Friction between the rotor and the stator creates a vacuum in the inlet area thereby helping the entry of the product into the pump. The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transport the product to the outlet.
To improve solids particles pass towards its inner with the best possible deal and to avoid its break, each endless screw has a big diameter and a specific design for each model pump.

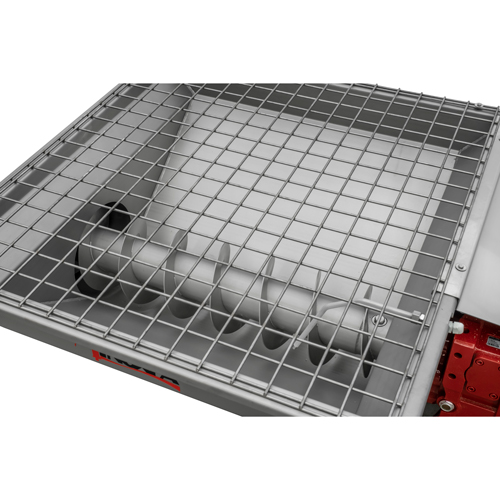

The hoppers have a safety grid, drainage and a minimum level resistive sensor to stop the pump in the event there is not product in its inner and to avoid the running dry.

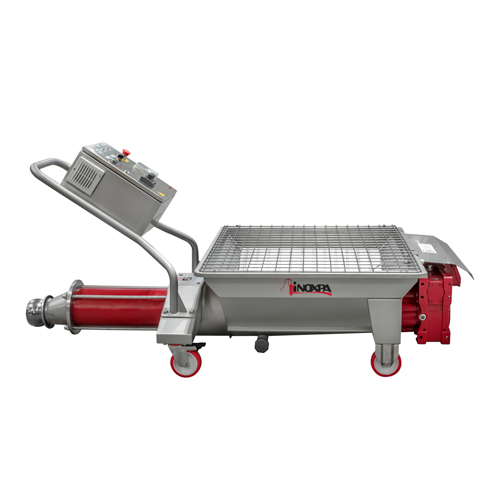

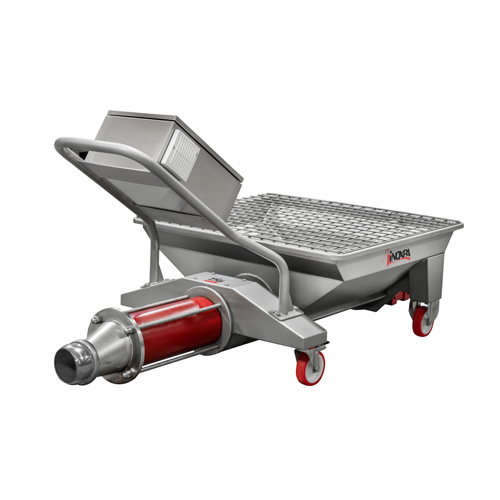

The pumps are supplied mounted on stainless steel trolley with swivel wheels with brake. Also, an ergonomic handle prepared to mount an electrical panel is included.
Parts in contact with the product 1.4301 (AISI 304)
Stator NBR (with a lower hardness to better treat the solids in suspension)
Sealing NBR double seal
Plastic or stainless steel electrical panel
Remote control
Frequency converter
Other connections
Friction between the rotor and the stator creates a vacuum in the inlet area thereby helping the entry of the product into the pump. The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transport the product to the outlet.
Parts in contact with the product 1.4301 (AISI 304)
Stator NBR (with a lower hardness to better treat the solids in suspension)
Sealing NBR double seal
Plastic or stainless steel electrical panel
Remote control
Frequency converter
Other connections
| Dokument N° | FT.KIBER_KTE.1.ES.pdf |
| Titel | Bomba Helicoidal Kiber KTE |
| Dateityp | |
|
|
| Dokument N° | FT.KIBER_KTE.1.EN.pdf |
| Titel | Progressive Cavity Pump Kiber KTE |
| Dateityp | |
|
|
| Dokument N° | FT.KIBER_KTE.1.FR |
| Titel | Pompe Hélicoïdale Kiber KTE |
| Dateityp | |
|
|
| Dokument N° | 01.624.30.01ES.pdf |
| Titel | INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO BOMBA HELICOIDAL KIBER KTE |
| Dateityp | |
|
|
| Dokument N° | 01.624.30.01EN.pdf |
| Titel | INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS HELICOIDAL PUMP KIBER KTE |
| Dateityp | |
|
|
| Dokument N° | 01.624.30.01FR.pdf |
| Titel | INSTRUCTIONS RELATIVES À L’INSTALLATION, À LA MISE EN SERVICE ET À LA MAINTENANCE POMPE HÉLICOÏDALE KIBER KTE |
| Dateityp | |
|
|
| Dokument N° | 01.624.12.0001.pdf |
| Titel | KIBER KTE-60 |
| Dateityp | |
|
|
| Dokument N° | 01.624.12.0002.pdf |
| Titel | KIBER KTE-80 |
| Dateityp | |
|
|
| Dokument N° | 01.624.12.0003.pdf |
| Titel | KIBER KTE-90 |
| Dateityp | |
|
|
| Dokument N° | 01.624.12.0004.pdf |
| Titel | KIBER KTE-100 |
| Dateityp | |
|
|
