INNOVA L Divert Single Seat Valve

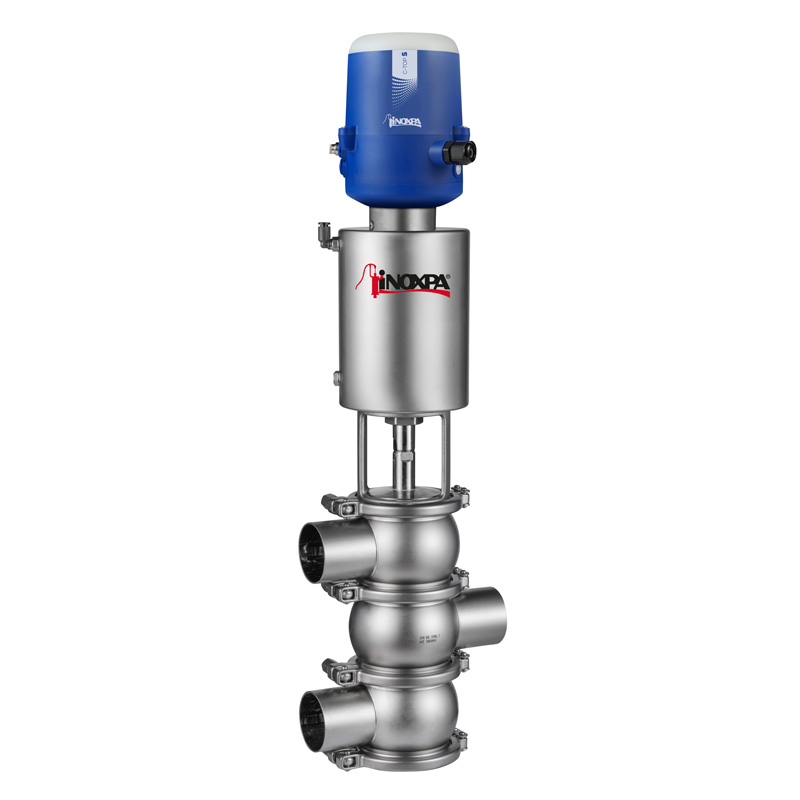

The L type valve is a pneumatic divert single seat valve with diverging flow designed for hygienic applications. The plug is specifically designed to manage diverging flows, given that it closes against the direction of flow (inlet via the central body and outlet via the upper or lower bodies).

Information

INNOVA L Divert Single Seat Valve

* indicates required

Aufbau und Kenndaten

As standard, the lower body is the closure section, whilst the upper body is for diversion.
Simply invert the actuator for upper body closure with diversion to the lower body.
Easy to maintain with access to the internal parts by loosening the body clamp.
Open lantern allows visual inspection of the shaft sealing.
360º adjustable bodies.

Materialien

Parts in contact with the product 1.4404 (AISI 316L)
Other stainless steel parts 1.4301 (AISI 304)
Gasket in contact with the product EPDM

Surface finish
Internal Polished Ra ≤ 0,8 μm
External Matt

Available sizes
DIN EN 10357 series A DN 25 - DN 100
(previously DIN 11850 series 2)
ASTM A269/270 OD 1’’ - OD 4’’
(corresponds to OD pipe)

Connections: Weld

Dokument

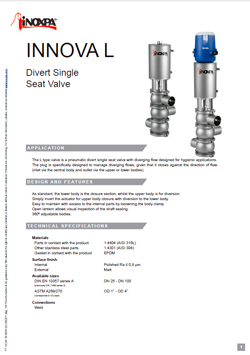

Technisches datenblatt v.22 (4)
Technisches datenblatt (5)
Quick installation guide v.22 (1)
Quick installation guide (1)
Bedienungsanleitung v.22 (4)
Bedienungsanleitung (3)
Funktionsweise
Materialien and Optionen

Parts in contact with the product 1.4404 (AISI 316L)
Other stainless steel parts 1.4301 (AISI 304)
Gasket in contact with the product EPDM

Surface finish
Internal Polished Ra ≤ 0,8 μm
External Matt

Available sizes
DIN EN 10357 series A DN 25 - DN 100
(previously DIN 11850 series 2)
ASTM A269/270 OD 1’’ - OD 4’’
(corresponds to OD pipe)

Connections: Weld
